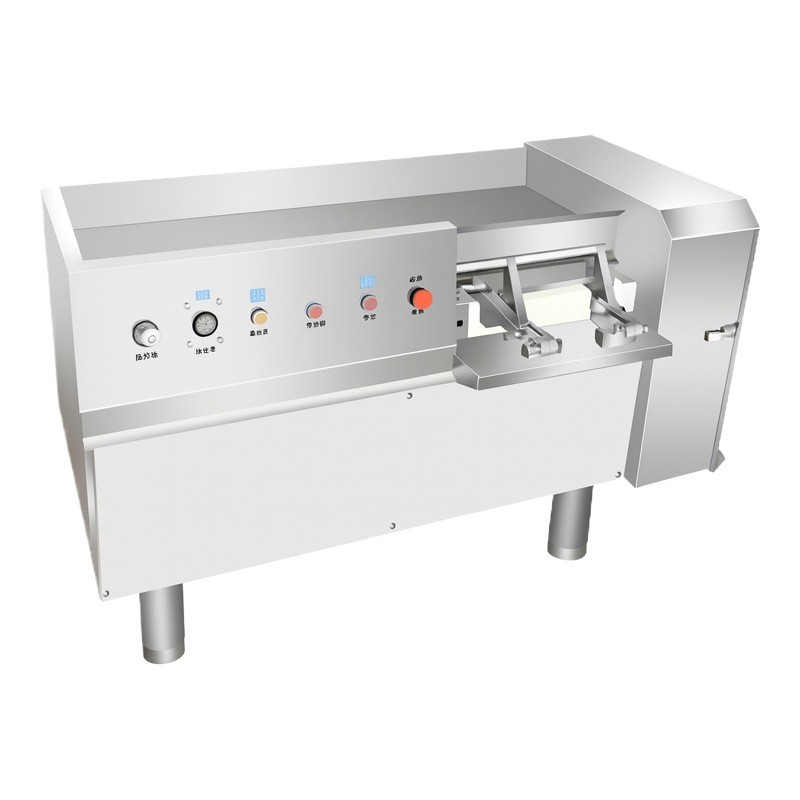

Frozen Meat Chunk Dicer Machine for Efficient Meat Processing
Model | FD-350 | FD-550 |

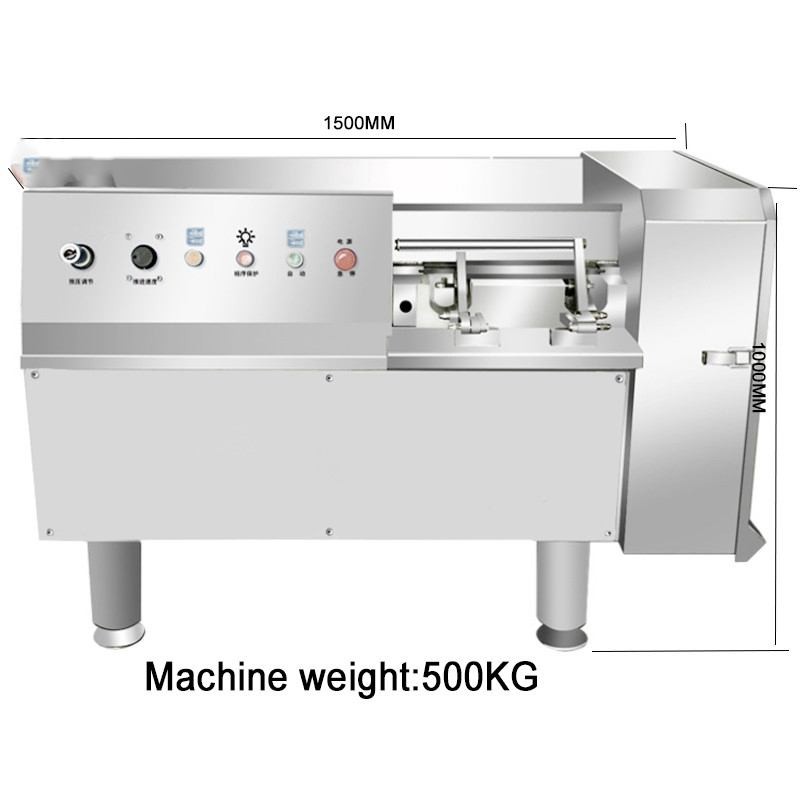

Size | 1500*700*1000mm | 2000*980*1100mm |
Cutting groove size | 84*84*350mm | 120*120*550mm |
Maximum loading length | 350mm | 550mm |
Minimum dice size | 3-4mm | 3-4mm |
Maximum dice size | 30mm | 30mm |
Cutting grid size | 5/6/7/9/11/14/16/19mm | 5/6/7/9/11/14/16/19mm |
Oil pump motor power | 1.5kw | 1.5kw |
Main motor power | 2.2kw | 2.2kw |
Capacity | 500-600kg/h | 700-900kg/h |
Wooden box size/weight | 1600*850*1200mm/312kg | 2100*1000*1250mm/514kg |
The Frozen Meat Chunk Dicer Machine is a professional meat processing equipment designed to cut frozen meat blocks into uniform cubes, strips, or slices with high precision. It can process meat at low temperatures (-3°C to -18°C) without the need for complete thawing, saving time and preserving meat quality.
Key Features Frozen Meat Chunk Dicer Machine
Direct Cutting of Frozen Meat – No full thawing required, reducing nutrient loss and bacterial growth.
Adjustable Cutting Size – Various cube sizes available (5mm, 10mm, 15mm, 20mm, etc.) by changing blades.
Multi-Functional – Suitable for beef, pork, poultry, fish, and some frozen vegetables.
High Output Capacity – Processes hundreds of kilograms to several tons per hour, ideal for industrial production.
Hygienic Design – Made of food-grade stainless steel, easy to clean and maintain, compliant with food safety standards.

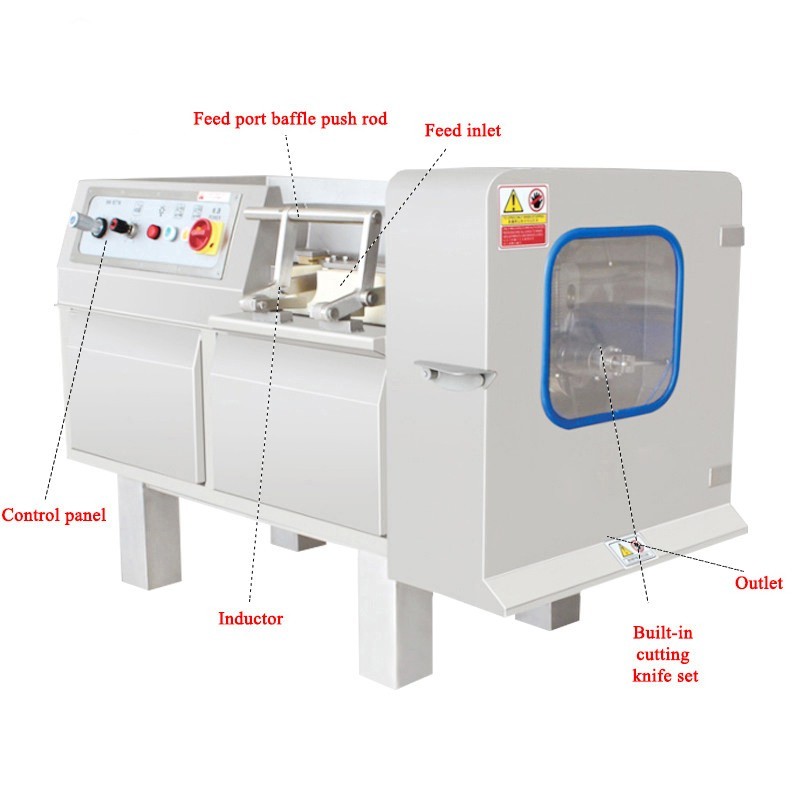

Main Components Frozen Meat Chunk Dicer Machine
Feeding Hopper – For placing frozen meat blocks.

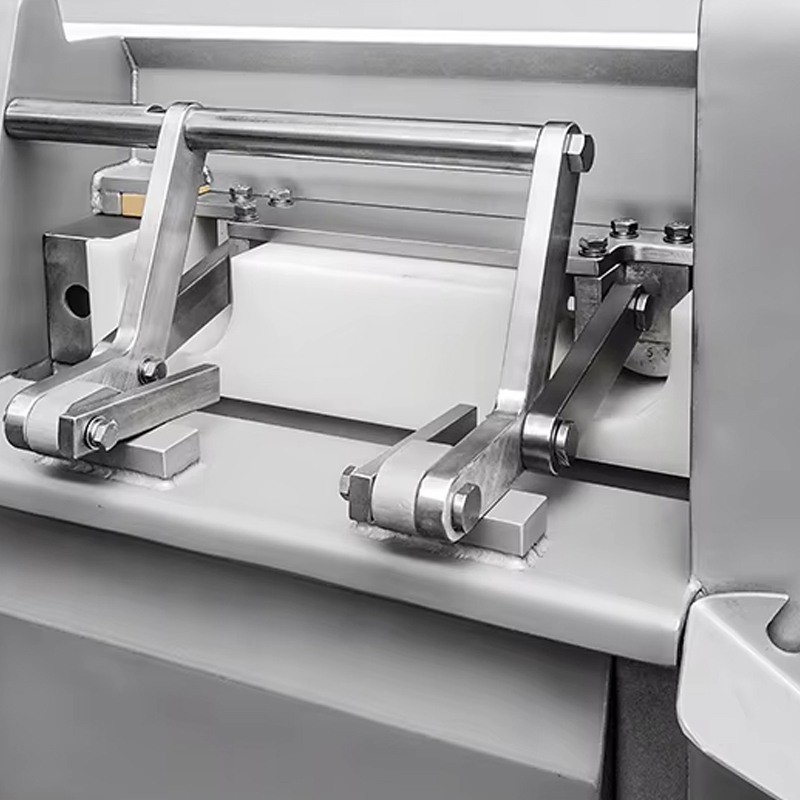

Pressing & Conveying System – Ensures stable feeding and accurate cutting.

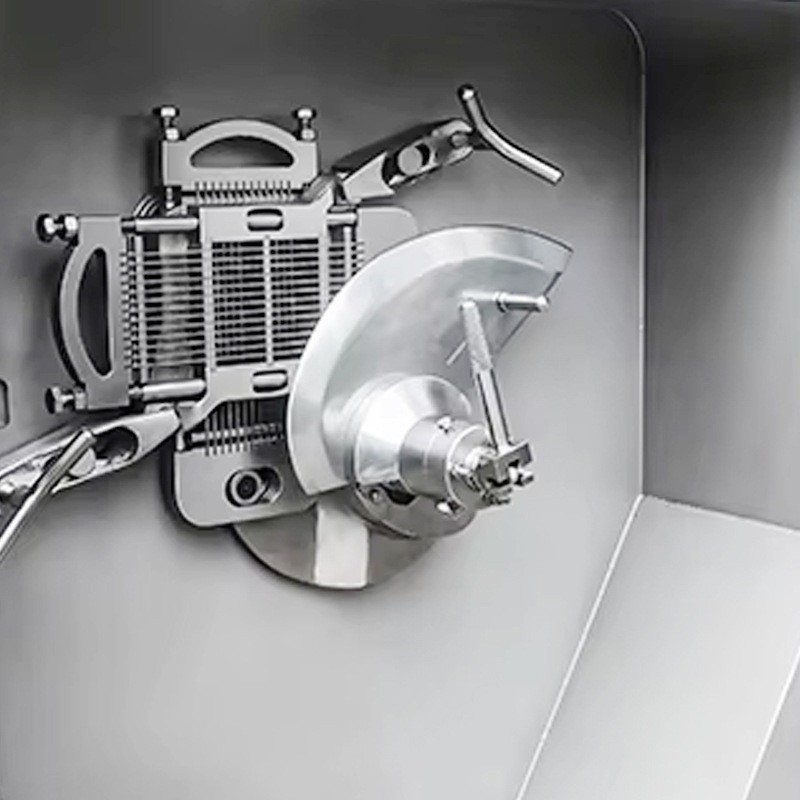

Cutting Blade Assembly – Includes vertical, horizontal, and cross blades for multiple cutting styles.
Control Panel – Adjustable speed and cutting size.
Safety Protection – Transparent cover and safety switches for operator security.
Applications Frozen Meat Chunk Dicer Machine
Meat processing plants (sausages, luncheon meat, meatballs, etc.)
Frozen food factories (pizza toppings, frozen stir-fry packs)
Central kitchens (restaurant chains, catering companies)
Seafood processing (frozen fish cubes, shrimp)
Why Choose Us
10+ years of manufacturing experience
Exported to over 30 countries
CE and ISO certified
Customizable designs for different production needs

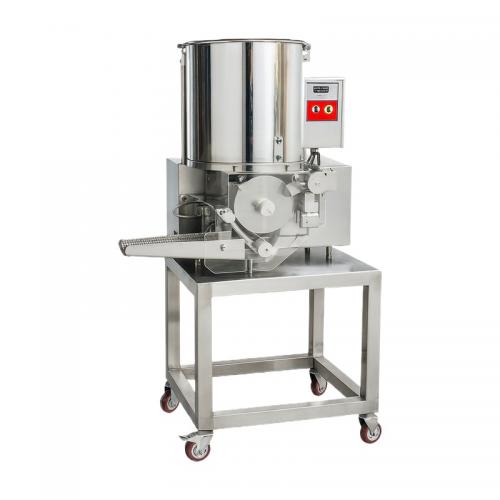

Burger Patty Making Machine For Burger Shops And Supermarkets Compact Footprint
Automatic Meat Roll Cutting Machine Hot Pot Supermarket Meat Roll Cutting Machine
Seafood Tumbling Machine For Seafood Processing With Efficient Brining And Flavor Consistency
Ice Cream Trailer For Sale Mobile Food Catering Trailer Fully Equipped Outdoor Mobile Beer Coffee Carts Food Trailers
Meat Tumbling Machine For Efficient Marination Tenderizing And Mixing Of Meat Products

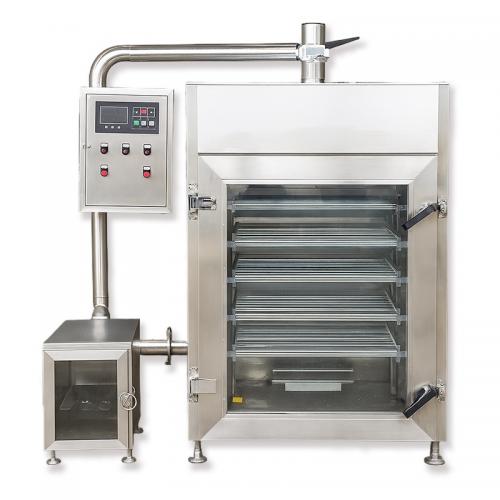

50kg Meat Smoking Oven for Sausage Bacon and Seafood with Adjustable Smoking
