Surimi Processing Machine Fish Meat Bone Mince Separator Surimi Machine Supplier

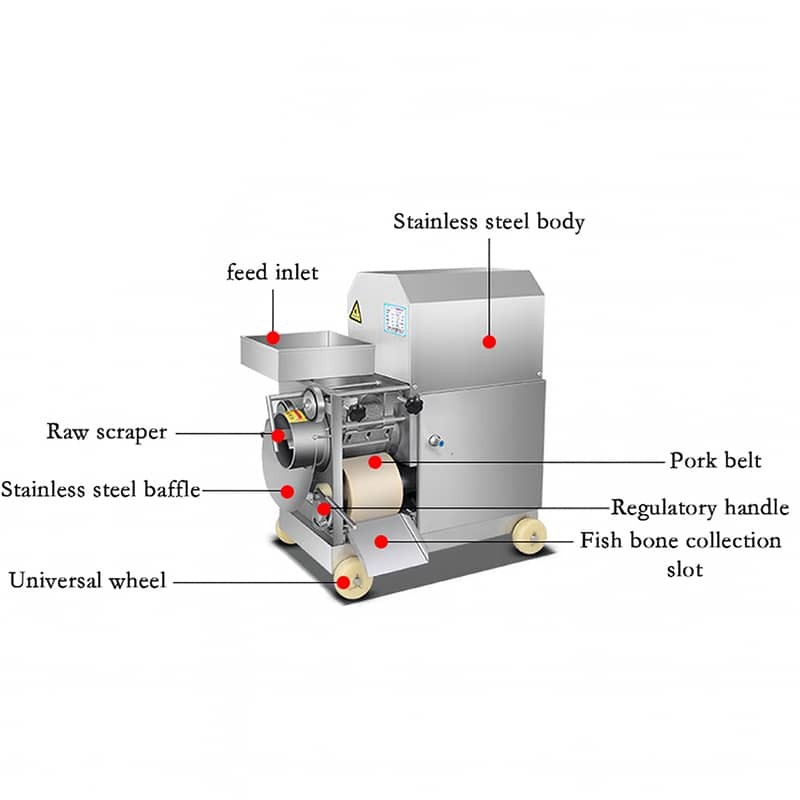

Surimi Processing Machine is also called fish meat extractor, fish bone separator, fish bone separator, and bone-meat separator. It can easily separate fish meat from fish bones and fish skin. It is an essential processing equipment for making fish products such as fish balls and fish tofu.
Model | FD-FS150 | FD-FS200 | FD-FS300 |
Size | 850*650*910mm | 900*750*1000mm | 980*800*1000mm |
Package volume | 0.672m³ | 0.878 m³ | 1.007 m³ |
Material | The wheels are nylon, the shell is 1.2 thick 304 stainless steel, and the frame is 8 thick 304 stainless steel. | ||
Yield | 180kg/h | 280 kg/h | 360 kg/h |
Power | 2.2kw | 2.2kw | 3 kw |
Rubber belt thickness | 20mm | ||
Rubber belt length | 1195mm | 1450mm | 1450mm |
Drum diameter | 159mm | 170mm | 219mm |
156mm | 219mm | 219mm | |
Drum wall thickness | 6mm | 6mm | 6mm |
4mm | 6mm | 6mm | |
Drum length | 300mm | 350mm | 485mm |
Mesh diameter | 2.7mm/3.2mm | 2.7mm/3.2mm | 2.7mm/3.2mm |
2.7mm | 2.7mm | 2.7mm | |
Weight | 173kg | 220kg | 252kg |
Note | 1. The smaller the gap adjustment between the belt and the drum, the cleaner the meat will be. 2. Frozen fish cannot collect frozen fish directly and must be thawed. | ||
Fish Meat Squeezing Machine Features:
1. This machine is energy-efficient, durable, convenient, and quick to use. It features a compact structure, attractive appearance, simple operation, high efficiency, low power consumption, easy cleaning and maintenance, and is safe and hygienic.
2. It utilizes a fully enclosed gear drive, resulting in a compact mechanism, smooth operation, reliable operation, and easy maintenance.
3. The machine head and food-contact parts are made of high-grade stainless steel, ensuring safety and pollution-free operation.
4. The machine housing features smooth lines, free of crevices that could harbor dirt and sharp edges that could harm the operator, making it easy to clean.
5. Additional equipment, such as a meatball machine and refrigerator, can be configured to meet your schedule.
Fish Meat Squeezing Machine Applications:
Chinese restaurant equipment, frozen food factory equipment, meat processing plant equipment
The minced fish can be directly used to produce a variety of surimi products: fish balls, fish noodles, fish glue, fish dumplings, etc.
