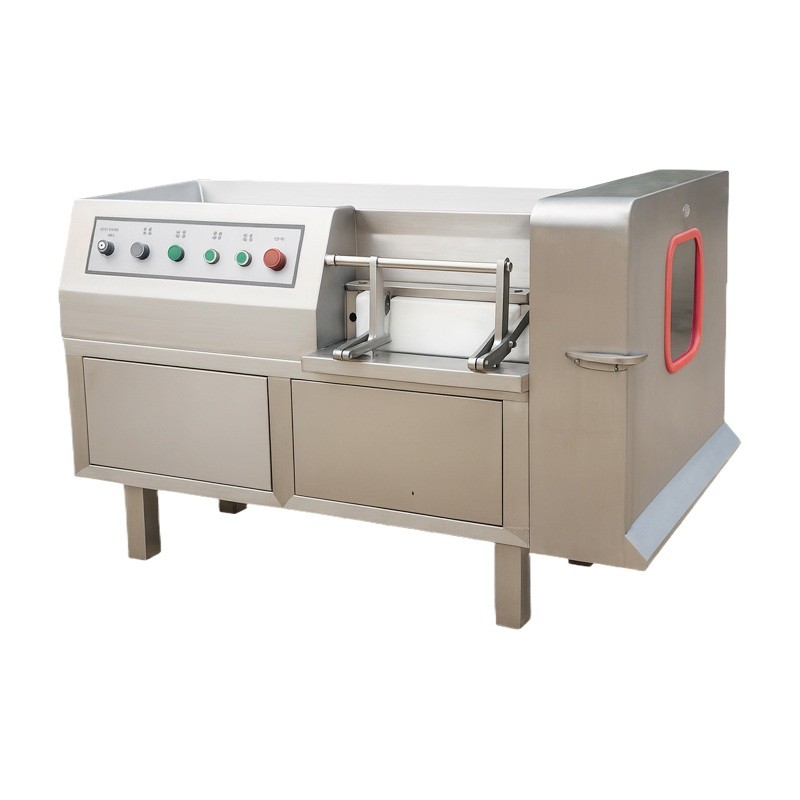

Dice Cutting Machine for Efficient Meat Processing
Model | FD-350 | FD-550 |

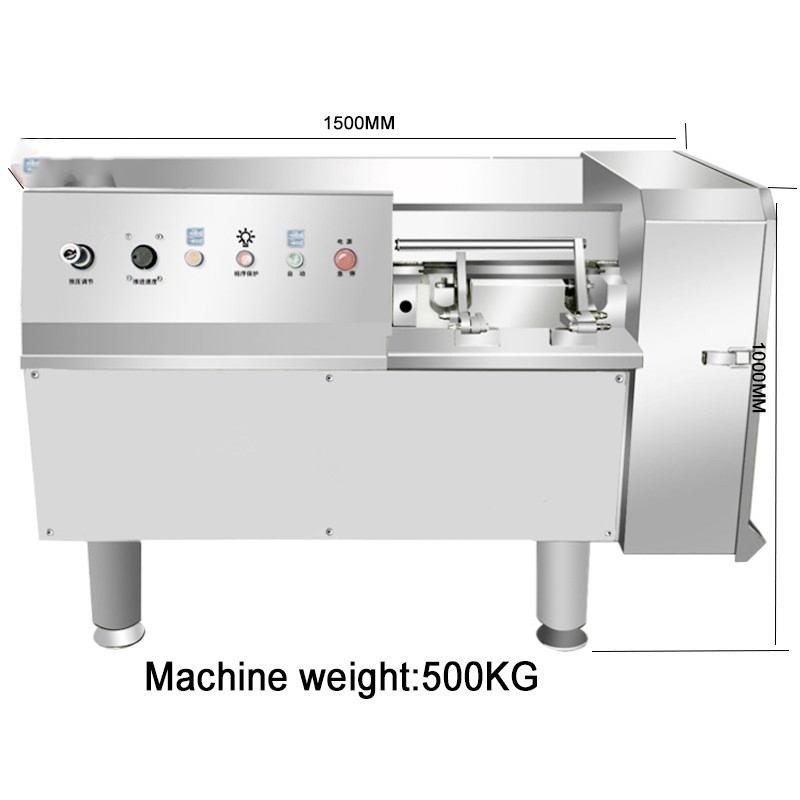

Size | 1500*700*1000mm | 2000*980*1100mm |
Cutting groove size | 84*84*350mm | 120*120*550mm |
Maximum loading length | 350mm | 550mm |
Minimum dice size | 3-4mm | 3-4mm |
Maximum dice size | 30mm | 30mm |
Cutting grid size | 5/6/7/9/11/14/16/19mm | 5/6/7/9/11/14/16/19mm |
Oil pump motor power | 1.5kw | 1.5kw |
Main motor power | 2.2kw | 2.2kw |
Capacity | 500-600kg/h | 700-900kg/h |
Wooden box size/weight | 1600*850*1200mm/312kg | 2100*1000*1250mm/514kg |
The Dice Cutting Machine is a professional meat processing equipment designed to cut frozen meat blocks into uniform cubes, strips, or slices with high precision. It can process meat at low temperatures (-3°C to -18°C) without the need for complete thawing, saving time and preserving meat quality.
Key Features Dice Cutting Machine
Direct Cutting of Frozen Meat – No full thawing required, reducing nutrient loss and bacterial growth.
Adjustable Cutting Size – Various cube sizes available (5mm, 10mm, 15mm, 20mm, etc.) by changing blades.
Multi-Functional – Suitable for beef, pork, poultry, fish, and some frozen vegetables.
High Output Capacity – Processes hundreds of kilograms to several tons per hour, ideal for industrial production.
Hygienic Design – Made of food-grade stainless steel, easy to clean and maintain, compliant with food safety standards.

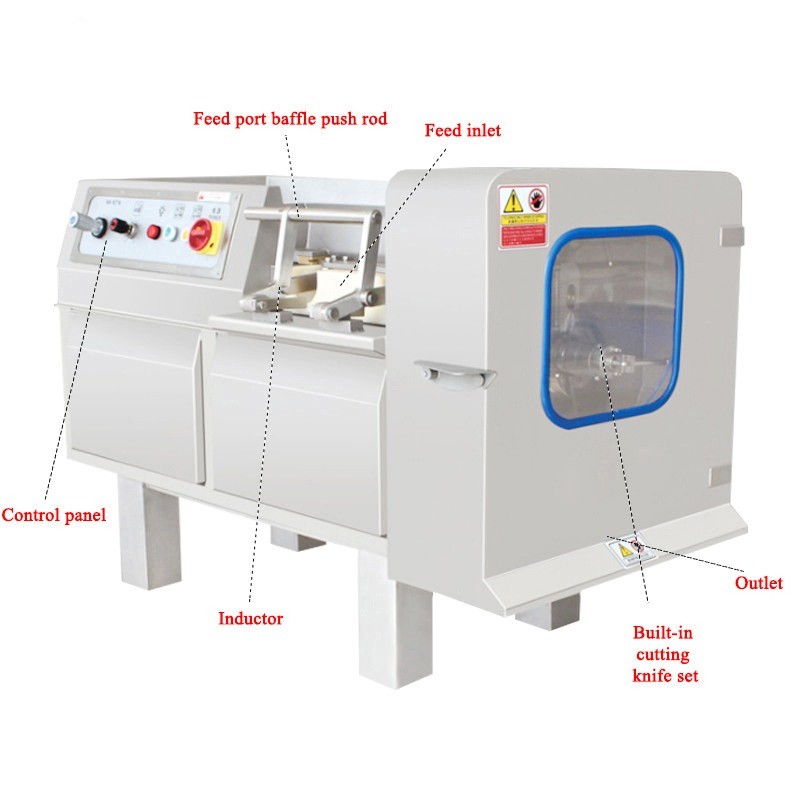

Main Components Dice Cutting Machine
Feeding Hopper – For placing frozen meat blocks.

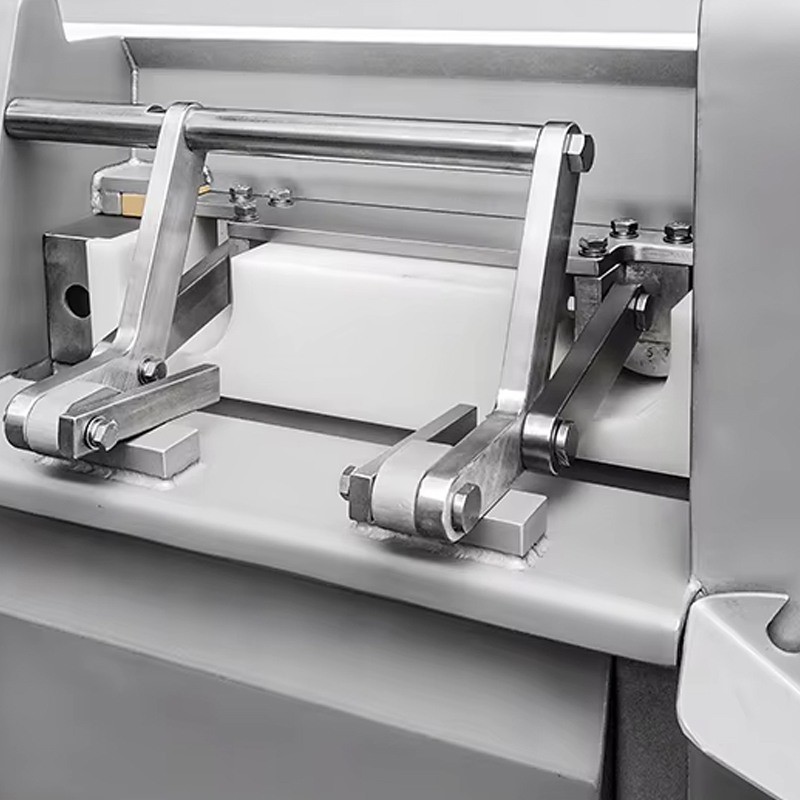

Pressing & Conveying System – Ensures stable feeding and accurate cutting.

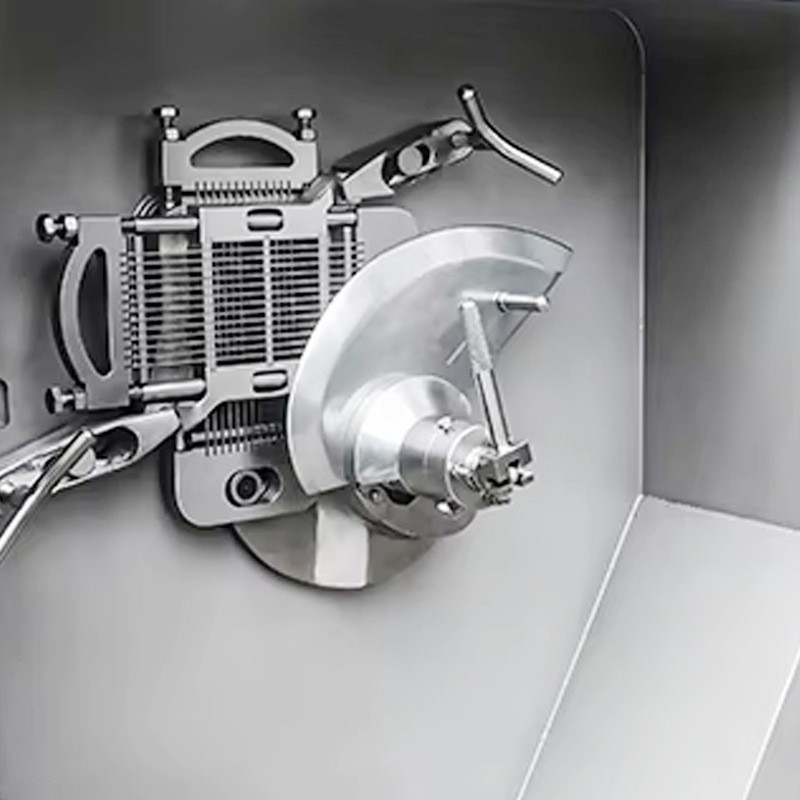

Cutting Blade Assembly – Includes vertical, horizontal, and cross blades for multiple cutting styles.
Control Panel – Adjustable speed and cutting size.
Safety Protection – Transparent cover and safety switches for operator security.
Applications Dice Cutting Machine
Meat processing plants (sausages, luncheon meat, meatballs, etc.)
Frozen food factories (pizza toppings, frozen stir-fry packs)
Central kitchens (restaurant chains, catering companies)
Seafood processing (frozen fish cubes, shrimp)
Why Choose Us
10+ years of manufacturing experience
Exported to over 30 countries
CE and ISO certified
Customizable designs for different production needs
Concession Food Trailer For Sale Kitchenware Customized China Hot Selling Fast Street Mobile Round Food Trailer
Vacuum Marinating Meat Tumbler For Hygienic Marination Faster Flavor Absorption And Extended Shelf Life

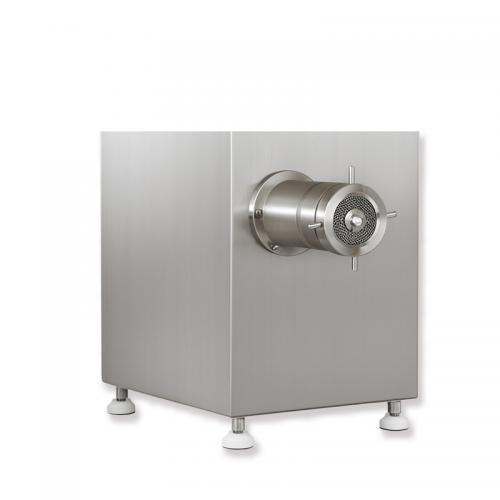

Commercial Meat Grinder Machine Used In Frozen Meat Mincing And Industrial Grinding

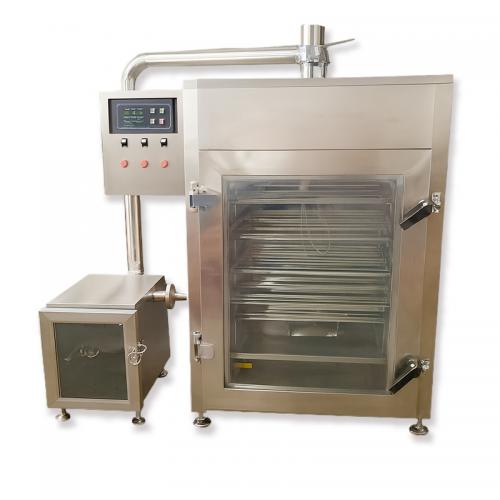

200kg Electric Gas Smoker Oven for Small-Scale Butchers and Specialty Food Shops

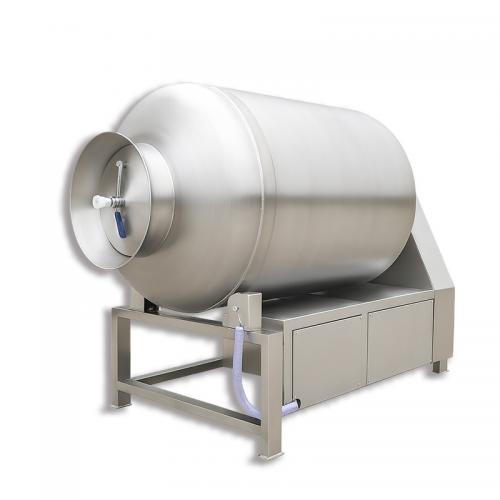

Fish Marinating Machine For Seafood Processing With Efficient Brining And Flavor Consistency
