Meat Dice Cutting Machine for Efficient Meat Processing
Model | FD-350 | FD-550 |

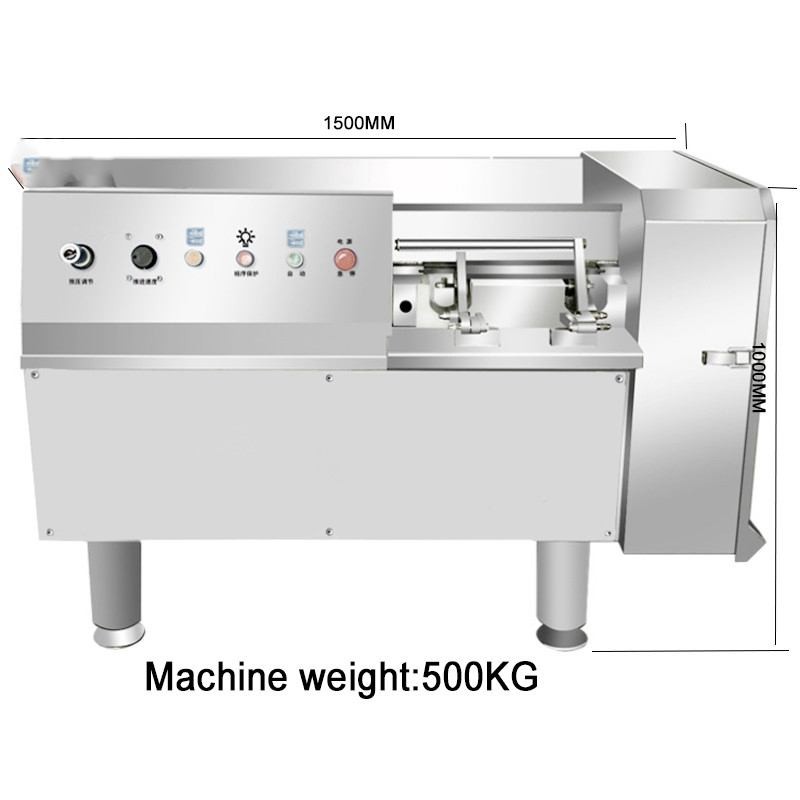

Size | 1500*700*1000mm | 2000*980*1100mm |
Cutting groove size | 84*84*350mm | 120*120*550mm |
Maximum loading length | 350mm | 550mm |
Minimum dice size | 3-4mm | 3-4mm |
Maximum dice size | 30mm | 30mm |
Cutting grid size | 5/6/7/9/11/14/16/19mm | 5/6/7/9/11/14/16/19mm |
Oil pump motor power | 1.5kw | 1.5kw |
Main motor power | 2.2kw | 2.2kw |
Capacity | 500-600kg/h | 700-900kg/h |
Wooden box size/weight | 1600*850*1200mm/312kg | 2100*1000*1250mm/514kg |

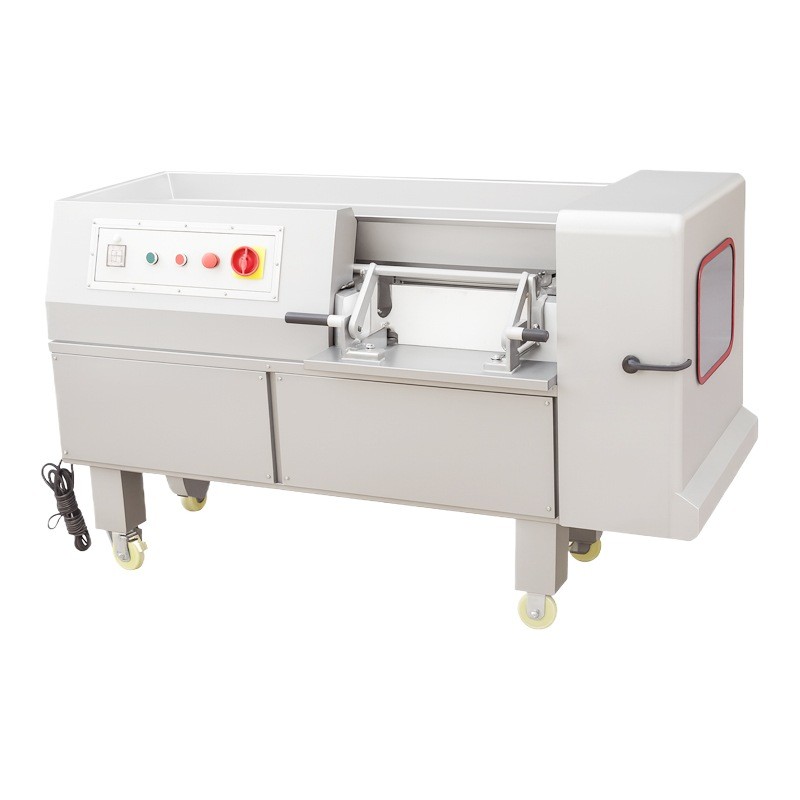

The Meat Dice Cutting Machine is a professional meat processing equipment designed to cut frozen meat blocks into uniform cubes, strips, or slices with high precision. It can process meat at low temperatures (-3°C to -18°C) without the need for complete thawing, saving time and preserving meat quality.
Key Features Meat Dice Cutting Machine
Direct Cutting of Frozen Meat – No full thawing required, reducing nutrient loss and bacterial growth.
Adjustable Cutting Size – Various cube sizes available (5mm, 10mm, 15mm, 20mm, etc.) by changing blades.
Multi-Functional – Suitable for beef, pork, poultry, fish, and some frozen vegetables.
High Output Capacity – Processes hundreds of kilograms to several tons per hour, ideal for industrial production.
Hygienic Design – Made of food-grade stainless steel, easy to clean and maintain, compliant with food safety standards.

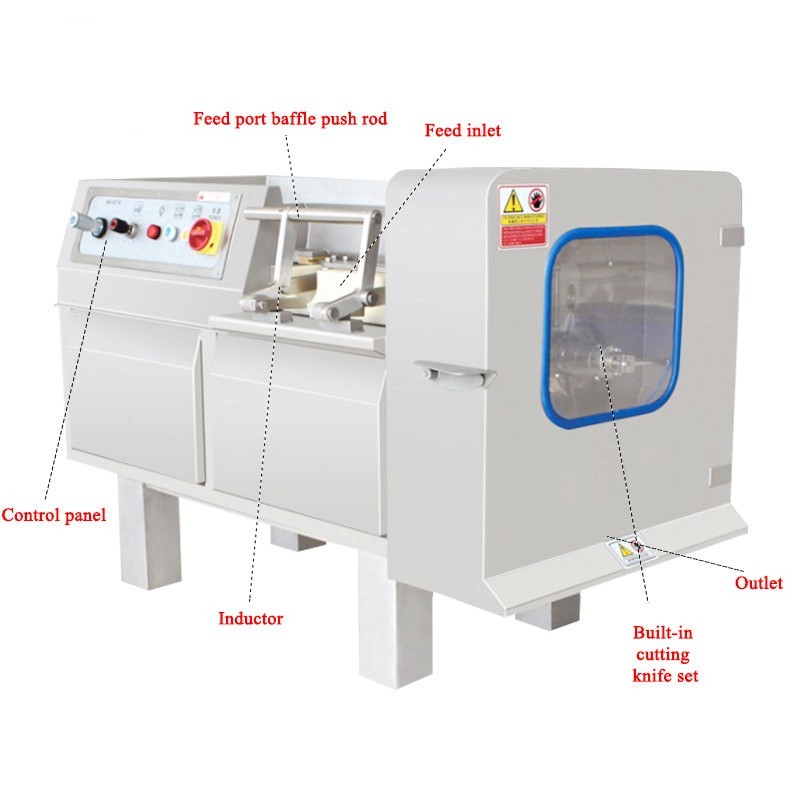

Main Components Meat Dice Cutting Machine
Feeding Hopper – For placing frozen meat blocks.

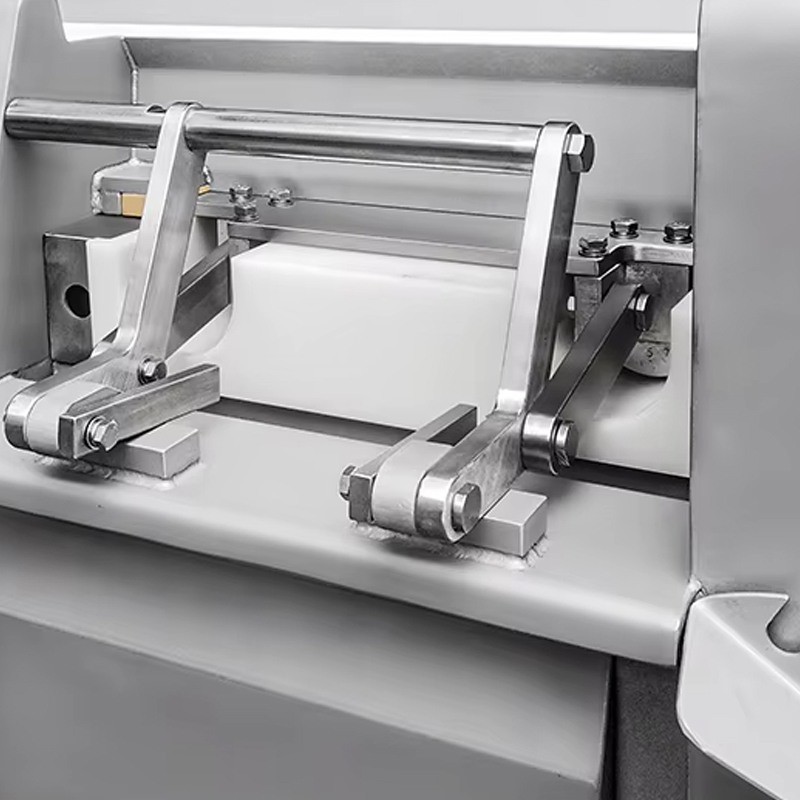

Pressing & Conveying System – Ensures stable feeding and accurate cutting.

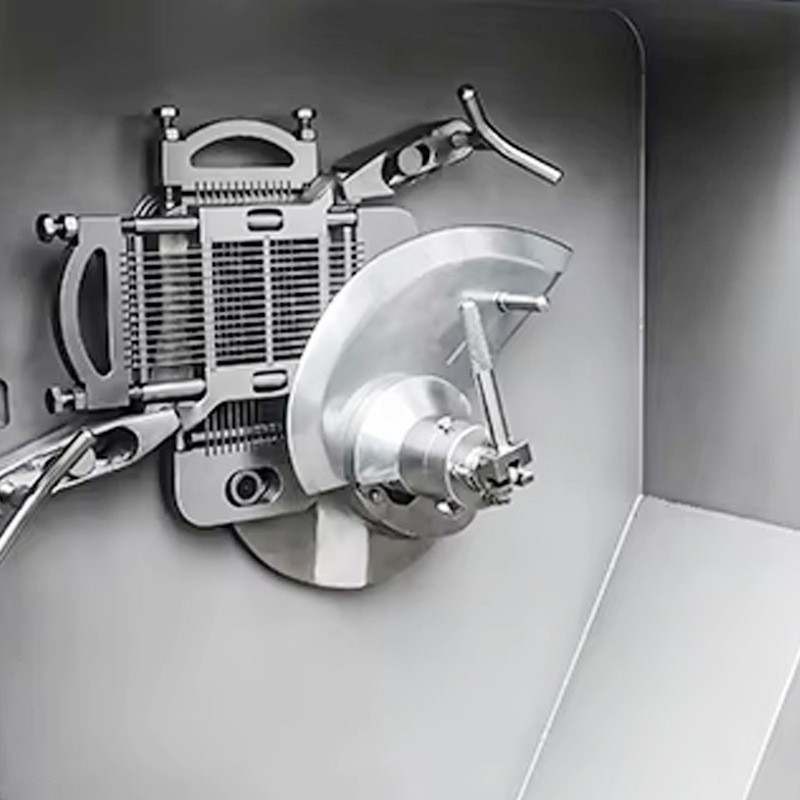

Cutting Blade Assembly – Includes vertical, horizontal, and cross blades for multiple cutting styles.
Control Panel – Adjustable speed and cutting size.
Safety Protection – Transparent cover and safety switches for operator security.
Applications Meat Dice Cutting Machine
Meat processing plants (sausages, luncheon meat, meatballs, etc.)
Frozen food factories (pizza toppings, frozen stir-fry packs)
Central kitchens (restaurant chains, catering companies)
Seafood processing (frozen fish cubes, shrimp)
Why Choose Us
10+ years of manufacturing experience
Exported to over 30 countries
CE and ISO certified
Customizable designs for different production needs

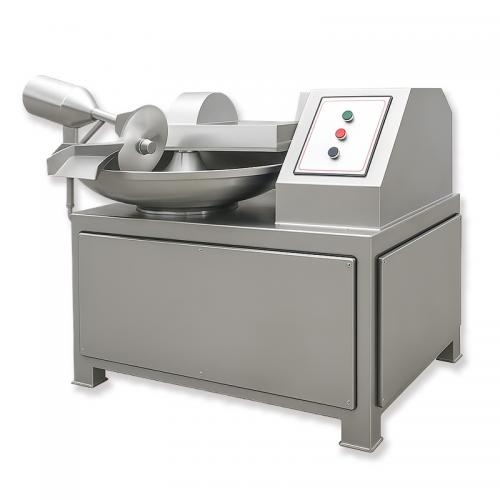

Meat Cutter Chopper For Professional Meat And Food Processing Applications
Automatic Burger Patty Maker For Fast Food Chains And Butcher Shops Uniform Shapes
Fish Open Back Machine Manual Cod Fish Splitting Butterfly Cutter Machine

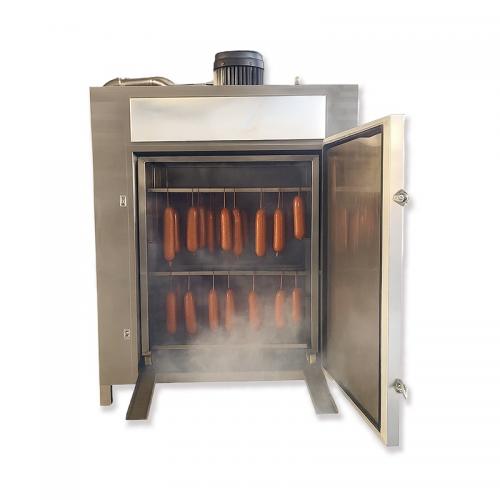

100kg Smoking Oven for Large Scale Meat and Seafood Processing with Fast Heating
