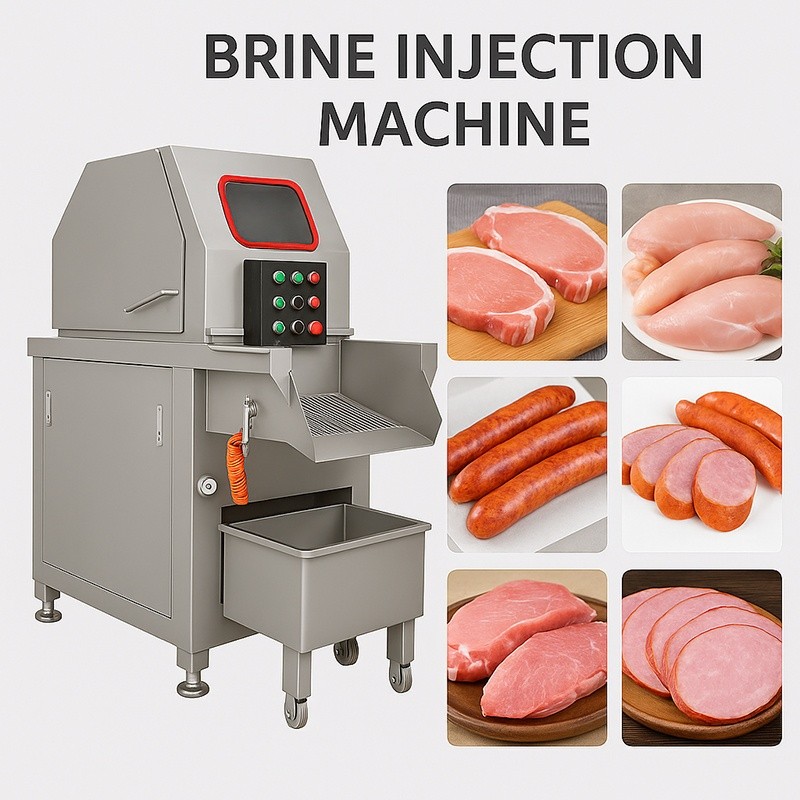

Saline Liquid Injector Machine Best Meat Brine Injection Marinade Machine Suppliers

The Saline Liquid Injector Machine evenly injects brine and other ingredients into meat, shortening the curing time and ensuring a uniform distribution of the curing agent, significantly improving the taste and yield of the meat. Easy to clean, with a rational structure and constructed entirely of stainless steel, this machine is an essential piece of equipment for the meat industry.
Model | Manual double gun/triple gun | FR-BJ48 | FR-BJ80 | FR-BJ120 |
Voltage | 220V/380V/0.55kw | 380v/3.7kw | 380V/4.75kw | 380V/5.2kw |
Size | 750*1000*800mm | 1080*1270*1820mm 1000*490*650mm | 1140*1320*1830mm | 1200*1400*1820mm |
Capacity | 300-600kg/h | 700-1400kg/h | 1500kg/h | |
Injection pressure | 0.2-0.7mpa | 0.2-0.7mpa | 0.2-0.7mpa | |
Injection rate | 20-80% | 20-80% | 20-80% | |
Number of injections | 32/42 times/min | |||
Needle diameter | 4mm | 3mm/4mm | 3mm/4mm | 3mm/4mm |
Weight | 480kg | 520kg | 560kg | |

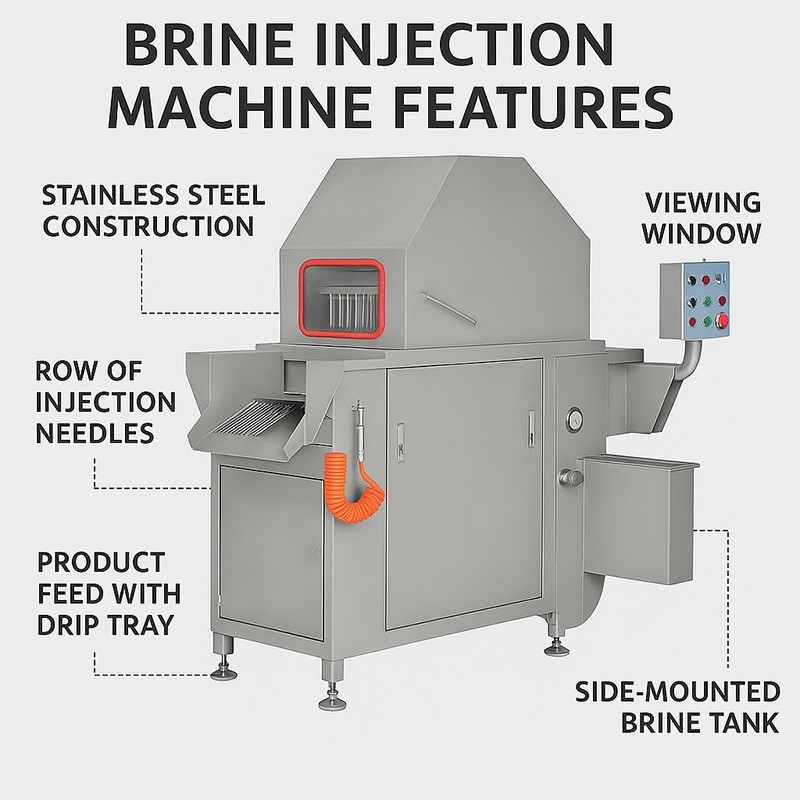

Product Features Saline Liquid Injector Machine:

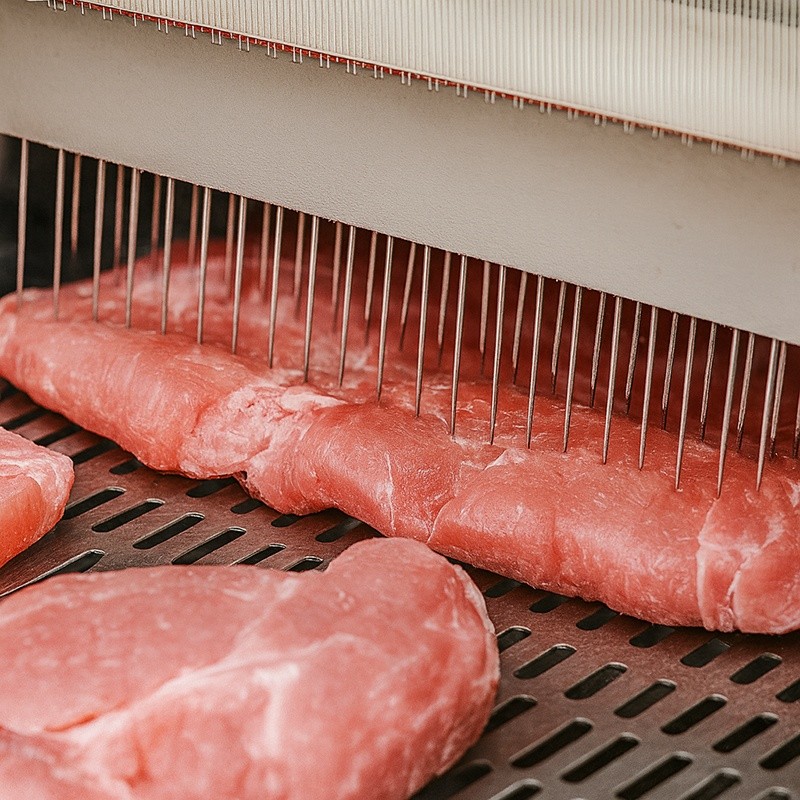

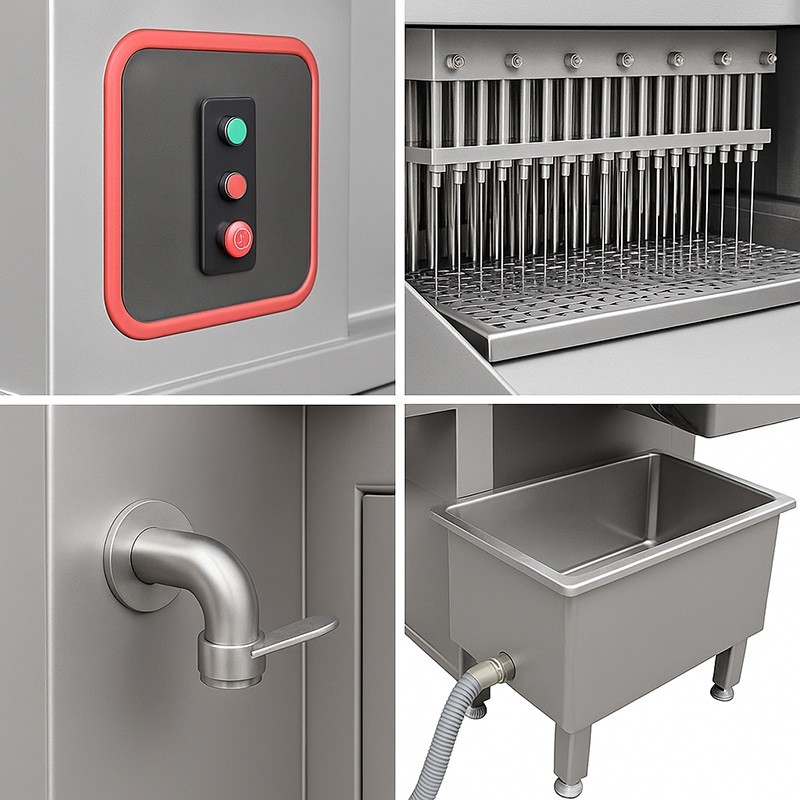

1. The meat feed chain is fully removable for easy cleaning. The injection needle utilizes a single needle and single barrel with an independent spring design, which automatically rebounds upon encountering bone, ensuring needle damage and extending the life of the equipment. Suitable for processing a variety of steaks, beef, chicken, and duck products, the machine ensures seamless injection of meat.
2. The Saline Liquid Injector Machine utilizes a toothed stepper feed mechanism for precise stepping. The meat is supported by three sets of removable bars, and the injection needle is spring-controlled, enabling bone-in injection.
3. The injection pressure, injection rate, stepping distance, and speed can be adjusted to suit the size of the material being injected and its tissue structure, ensuring optimal injection results. Furthermore, this machine utilizes a four-stage filtration system to prevent needle clogging. Simple operation and easy maintenance make it an ideal device for meat processing.


Fish Marinating Machine For Seafood Processing With Efficient Brining And Flavor Consistency
Sausage Machine Electric Sausage Make Stuffer Filler Machine
Drink Water Trailers Customized Mobile Fruit Juice Drink Trailer
Airstream Food Van 17ft Shipping Container Food Trailer With Deep Fryer Coffee Van Pizza Ice Trailer

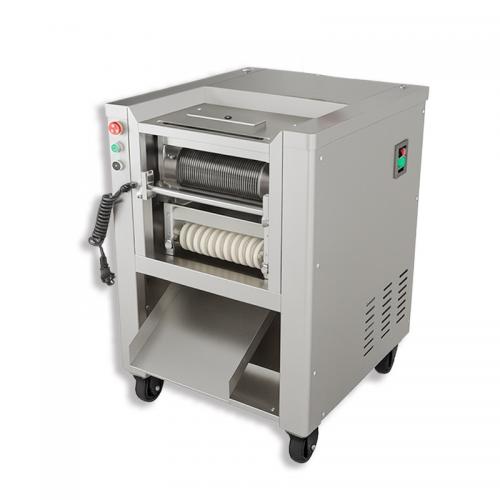

Meat Cutting and Rolling Machine Commercial Bacon Meat Slicer Rolling Slicing Machine
